Powder Premade Pouch Packaging Machine
- Food-grade stainless steel
- Suitable for stand pouch, doy pack pouch, zipper pouch, quad seal pouch, normal pouch
- For powder material, powdered food
- 24-hour professional service and Decent delivery time
- Advanced PLC electrical control system and convenient operation.
- Get Your Product PDF
- more videos add WhatsApp 008613868827095
Automatic Premade Stand Up Pouch Powder Packaging Machine
Related Product Click To Check
Powder premade pouch packing machine special for powder such as Coffee powder, Flavoring, MSG, Chill spicy powder, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, Chicken essence….etc.
Summary |
|||
|
1. Easy to change bag size and bag type.
2. Easy to adjust the Printer range.
3. Easy to adjust the speed during the packaging process
4. Machine optoelectronic system can check a bag, material filling and sealing situation to avoid failure.
4. Stable worktable with low noise and long life as the bottom drive system. 5. High bag opening effective and low machine failure rate. 6. Sample wiring arrangement with high-quality electronic components 7. The security system will open automatically when the heating fault and abnormal air pressure
|
|||
Parameters |
|||
|
LTC8-200
|
LTC8-260
|
LTC8-300
|
|
|
Bags size
|
W:80~210mm L:100~300mm
|
W:120~250mm L:100~400mm
|
W:200~300mm L:100~400mm
|
|
Bag type
|
Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag
|
Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag
|
Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag
|
|
Filling Volume
|
30 – 1900g depending on the type of products
|
30-2000g depending on the type of products
|
100-2500g depending on the type of products
|
|
Capacity
|
25-60 bags/min for different materials and different bag
|
25-60 bags/min for different materials and different bag
|
25-60 bags/min for different materials and different bag
|
|
Dimension
|
1.140*1.500*1.560m
|
2.46*1.83*1.46m
|
|
|
Weight & power supply
|
1400kgs/1500kgs/1600kgs-1800kgs 380v 50HZ 3P 2.5kw-5kw
|
||
|
Compress air requirement
|
0.6-1m³/min supply by user
|
||
|
Working flow
|
1. Bag feeding
2. Date printing 3. Zipper opening 4. Bag opening 5. Material filling 6. 2th material filling 7. Buffering or function 8. 2th sealing and output |
||
Product Image
Sample Bag
Attention: If the bag sizes fall outside of the specified range, we will offer customization options to fulfil any unique size requests.
- Zipper/Resealable/Ziplock bag packaging —— between zipper and bag mouth distance at least 2.5cm.
- Gusset bag packaging —— bag gusset width within 50mm, if the bag mouth is too small the products can’t fill completely, and can’t be packing.
- Spout bag packaging —— spout at the side of the bag, sealing sizes at least 50mm.
- Pallet bag packaging —— pallet in bags, pallet length lower bag mouth at least 3cm.

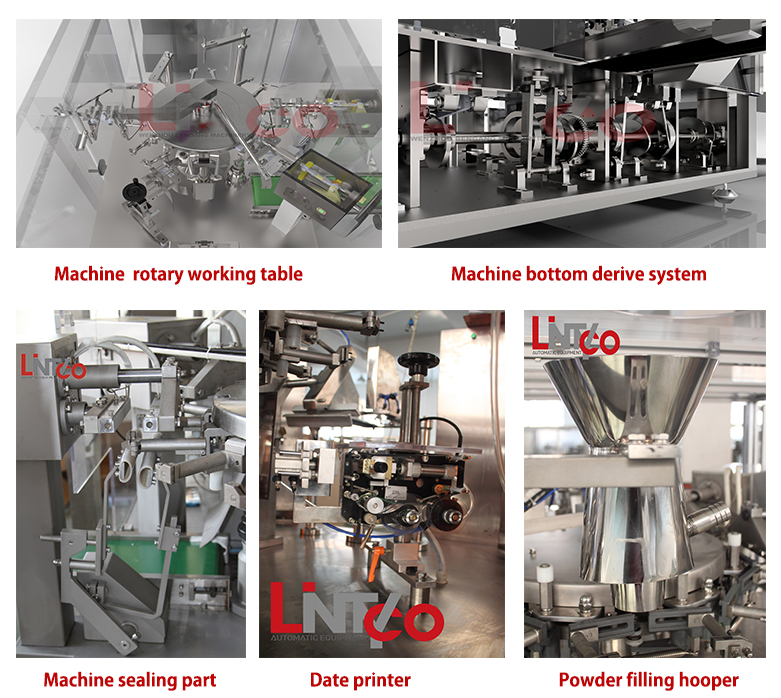

Machine Structure
Auxiliary Equipment
FAQ
|
Q1: Are you a factory or trading company?
|
|
A: We have 10+ Long Years Of Manfacturing&Trading Combo With Quality
|
|
Q2: Can you guarantee your quality?
|
|
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured of our production completely.
|
|
Q3: What should I do if we are not able to operate the machine when we receive it?
|
|
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have a professional after-sale group on the customer’s site to solve any problems.
|
|
Q4.What are the payment terms and trade terms for new customers?
|
|
A: Payment terms: T/T, L/C, D/P, O/A, Western Union etc.
|
Package&Delivery
